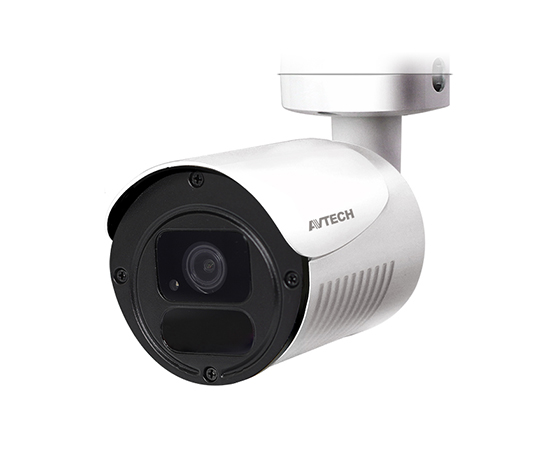

同軸帶音AVTECH 1080P防水紅外線攝影機 / DGC2105AT

NT$2,500



產品介紹

■ 1/2.9” CMOS Sensor with 1080P video output
■ Low light sensitivity of 0.1 Lux / F1.8, 0Lux (IR LED ON)
■ DWDR to increase image recognizability in overexposure and dark areas
■ Day and night 24-hour surveillance with IR effective distance up to 25 meters
■ IP66 for weather-proof application
■ Camera parameters adjustable when used with AVTECH HD CCTV DVR

產品規格
MODEL DGC2105AT
Pick-up Element 1/ 2.9” CMOS image sensor
Number of Pixels 1936(H) x 1096(V)
Video Frame Rate 1080P@30fps / 1080P@25fps
Min. Illumination 0.1 Lux / F1.8, 0 Lux (IR LED ON)
S/N Ratio More than 48dB (AGC OFF)
Shutter Speed 1/30 (1/25) sec ~ 1/50000 sec
Lens f3.6mm / F1.8
Lens Angle 89° (Horizontal) / 46° (Vertical) / 108° (Diagonal)
IR LED 2 units
IR Effective Distance Up to 25 meters
IR Shift YES
Day & Night Mode YES
Noise Reduction YES
IRIS Mode AES
White Balance AUTO / INDOOR / OUTDOOR / MANUAL
AGC Adjustable
Sharpness Adjustable
Flickerless 50HZ / 60HZ / OFF
BLC Adjustable
DWDR YES
IP Rating IP66
Operating Temperature -40℃ ~ 40℃
Operating Humidity 90% or less relative humidity
Power Source (±10%) DC12V / 0.5A
Current Consumption (±10%) 95mA (IR lED OFF); 265mA (IR LED ON)
Net weight (Kg) 0.36
Optional Junction Box AVA456-WHKT / AVA456-WBKT
Certification CE
