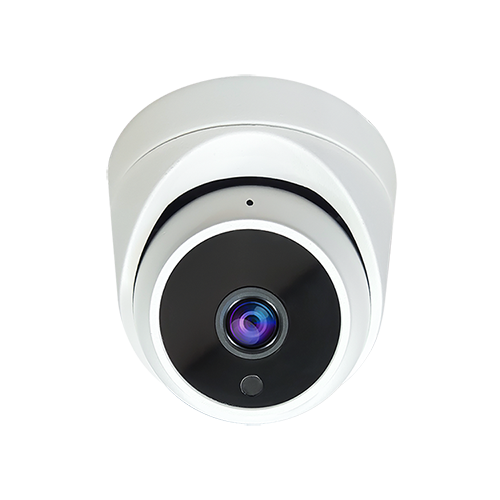

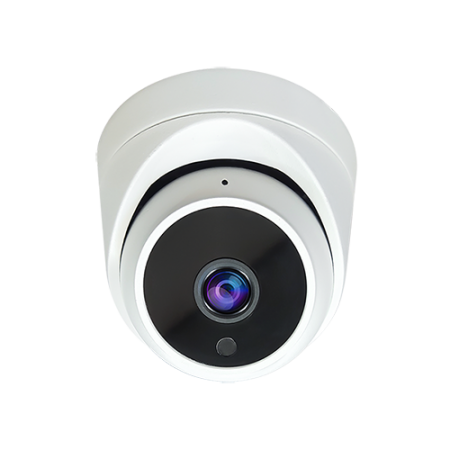

    陞泰AVTECH DGM5407AT 5MP AI智慧人形偵測網路攝影機

    • Starlight visibility to offer clear & color images even at night
    • AI-based human detection supported to avoid false detection alarms
    • ONVIF standard supported to simplify system integration
    • POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
    • Microphone built-in for audio recording
    • IR effective range up to 30 meters for night surveillance
    • WDR to increase image recognizability in overexposure and dark areas
    • Remote Surveillance

    — Fully compatible with Internet Explorer 6 and above on Windows operating system

    分類: 陞泰AVTECH熱銷商品
    • 描述
    • 評價 (0)

    描述

    ▓ Device
    Image Sensor 1/2.7″ SONY CMOS image sensor
    Max. Resolution 2616 x 1964 (5MP)
    Lens f2.8mm
    Min Illumination 0.001 Lux, 0 Lux (IR LED ON)
    Shutter Speed Auto / Manual
    IR LED 3 units
    IR Effective Distance** Up to 25 meters
    Day / Night YES
    WDR Mode YES
    RTC (real-time clock) NTP / Manual
    Micro SD Card Slot YES (up to 128GB)
    ▓ Video
    Compression H.264 / H.265
    Video Resolution 5MP / 4MP / 3MP / 1080P / 720P / D1 / VGA / 640 x 360 / CIF
    Frame Rate 25 IPS @ 5MP / 4MP / 3MP

    30 IPS @ 1080P / 720P / D1 / VGA / 640 x 360 / CIF

    Video Profile High profile / Main profile / Base profile
    Multiple Video Streaming 2 streams
    S/N Ratio More than 50dB (AGC off)
    Bitrate Control CBR / VBR
    Image Mode Normal / Super Starlight / Forced Frame Rate
    Image Enhancement WDR ( Level 0 ~ 255) / BLC / HLC / 2D DNR / 3D DNR
    Day / Night Switch Auto / Timing / External / Manual
    Forced Anti-flicker YES
    Defog YES
    White Balance AWB
    Image Orientation Flip / Mirror
    Privacy Mask 4 customized areas
    Text Overlay YES
    OSD Title Location / font size / text configurable; English & Chinese characters supported
    ▓ Audio
    Microphone built-in YES
    Line in YES
    Line out YES
    Encoding G711 / G711A / AAC
    Audio Adjustment YES
    ▓ Alarm & Event
    Alarm-in YES
    Alarm-out YES
    Detection Mode Human (Day & Night) / Motion
    Detection Schedule YES
    Motion Detection Area 1×1, 2×2, 3×2, 3×3, 4×3, 4×4, 8×8, 16×16, 22×18
    Human Detection Alert Audio alert with customized mp3 audio file(s)
    ▓ Storage
    On-Board Storage Built-in memory card slot, supports microSD / SDHC / SDXC card up to 128GB
    Overwrite YES
    Maximum Recoding Time / per File 1, 2, 3, 5, 10, 20 & 30 minutes configurable
    Recording Schedule YES
    ▓ Network
    LAN Port RJ45 connector x 1 / 2KV lightning-proof
    LAN Speed 10/100 Based-T Ethernet
    Supported Protocols TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, NTP, IPv4, IPv6, HTML5, ONVIF
    ONVIF Compatible YES
    Number of Online Users 6
    Security IP address filtering
    Remote Access Internet Explorer 6 and above
    ▓ General
    Web Interface Language English, Korea, Traditional Chinese, Simplified Chinese, Turkish, Russian, Czech
    Operating Temperature -30℃ ~ 85℃
    POE YES (IEEE 802.3af)
    Power Source (±10%) PoE (IEEE 802.3af) / DC12V
    Net Weight (g) 336.5
    Certification CE / FCC
    Casing IP67
    Minimum Web Browsing Requirements ‧Intel core i3 or higher, or equivalent AMD

    ‧2GB RAM

    ‧AGP graphics card, Direct Draw, 32MB RAM

    ‧Windows 10, Windows 8, Windows 7, DirectX 9.0 or later

    ‧Internet Explorer 6 or above (Windows Edge not supported)

    檔案下載

    1.DGM5407AT_英文型錄
